NX-PC0030 Industrial NX I/O Module 5-24 V DC Input Screwless Push In Connector

Product Categories
Changsha Zhinian Automation Equipment Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

NX-PC0030 Industrial NX I/O Module 5-24 V DC Input Screwless Push In Connector

  • 1
  • 2
  • 3

Brand Name : Omron

Model Number : NX-PC0030

Place of Origin : China

MOQ : 1/pc

Price : $50-500

Payment Terms : T/T, western union, D/P, alibaba

Supply Ability : 100pc/per week

Delivery Time : 1-3 working days

Packaging Details : Carton packaging or wooden packaging

Brand : Omron

Condition : 100% new and original

Lead time : 2-3 working days

MOQ : 1

Warranty : 12 months

Shipping Term : DHL/TNT/UPS/FEDEX Etc.

Series : NX

Type : Omron Programmable Logic Controllers PLC

Contact Now

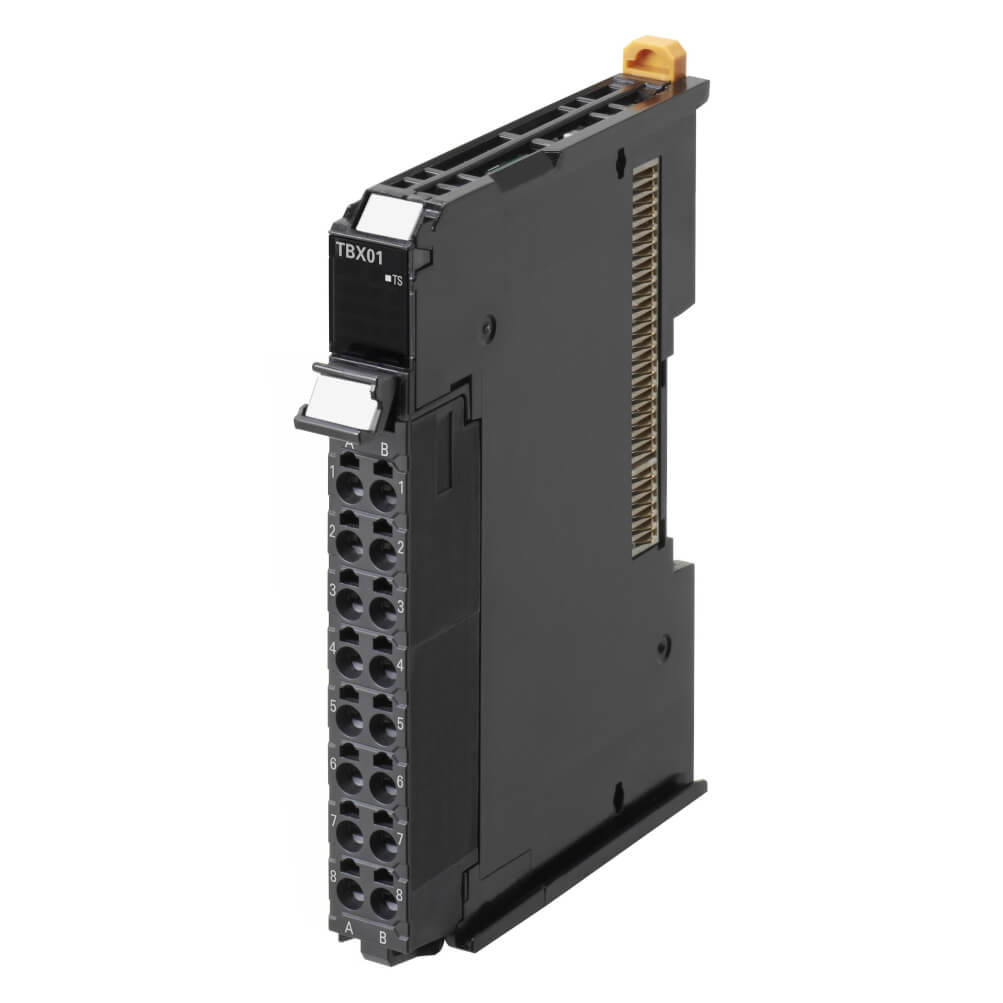

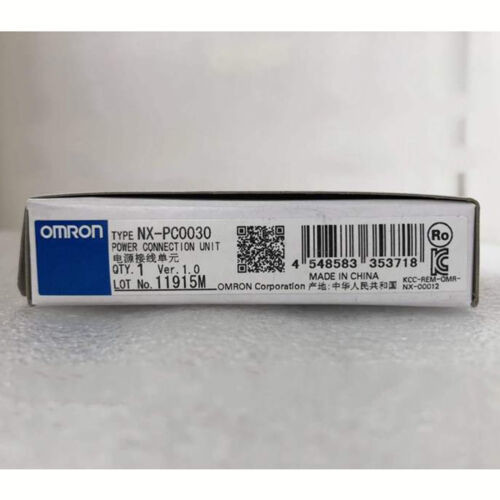

NX-PC0030 Industrial NX I/O Module 5-24 V DC Input Screwless Push-in Connector Power Connection Unit NX-PC0030

Descriptions
Omron NX Family of Series — NX-ID/IA/OD/OC/MD | Modular Digital I/O Unit:


Series Features:

  • High-speed I/O refreshing using the EtherCAT coupler
  • I/O refreshing synchronized with the control cycle of the controller (synchronous refreshing)
  • Time-stamp inputs and outputs anywhere in the EtherCAT network can be independently controlled with sub-microsecond accuracy
  • Detachable terminals for easy maintenance
  • Screwless Push-In Plus terminal block or MIL/Fujitsu connector speeds up installation
  • Compact with a width of 12 mm per unit (connector type: 30 mm)
  • 4, 8, 16 or 32 inputs for flexible I/O configuration (NX-ID/IA)
  • 2, 4, 8, 16 or 32 outputs for flexible I/O configuration (NX-OD/OC)
  • Connect to the CJ PLC using the EtherNet/IPTM bus coupler
  • EN ISO13849-1 (PLe/Safety Category 4), IEC 61508 (SIL3) certified
  • 4 or 8 points per Safety Input Unit. 2 or 4 points per Safety Output Unit
  • The Safety Units can be freely allocated in any combination with standard NX I/O
  • Small system size allows space savings in the cabinet.
  • Direct Diagnostic with LED's.
  • Easy wiring and easy to maintain

Specifications

I/O system NX I/O Bus
Type of module Power connection
I/O connection type Push-in
Number of I/O connectors 1
Detachable I/O connector
Suitable for safety functions
SIL according to IEC 61508 None
Number of IOV (V+) terminals 8
Number of IOG (V-) terminals 8
Number of FG terminals 0
Degree of protection (IP) IP20
Height 100 mm
Width 12 mm
Depth 71 mm
Weight 65 g

Accessories

NX-AUX02 Terminal block coding pins for 10x NX I/O units (terminal block: 30 pins, unit: 30 pins)
NX-PC0020 Unidade NX - Ligações 16xIOV 5-24VDC

Spare parts

NX-TBA122 Conector de encaixe sem parafusos de substituição, com 12 terminais de cablagem (marca A+B)

NX-PC0030 Industrial NX I/O Module 5-24 V DC Input Screwless Push In Connector

NX-PC0030 Industrial NX I/O Module 5-24 V DC Input Screwless Push In Connector
