PFXGM4301TAD Proface HMI with 5.7 Inch TFT Color LCD Display

  • 1
  • 2

Brand Name : Proface

Model Number : PFXGM4301TAD

Place of Origin : China/Japan

MOQ : 1/pc

Price : USD100-5000/pc

Payment Terms : T/T, western union

Supply Ability : 10pc/per week

Delivery Time : 3-5working days

Packaging Details : Carton packaging

Brand : Proface

Condition : New

Lead time : Stock

MOQ : 1

Currency : USD/RMB

Warranty : 12 month

Shipping Term : DHL/TNT/UPS/FEDEX Etc

Contact Now

PFXGM4301TAD Proface HMI 7 Inch LED Backlight Hot Sale Touch Screen

Standard product information
Family
HMI
Series
GP4000M Series
Size
5"
Model
PFXGM4301TAD
Global Code
PFXGM4301TAD
Product Features
Modular 5" DC Analog
Repair Status
- (Maintenance service is not available. Replace with a new unit under warranty.)
Display specifications
Display type
TFT Color LCD
Display size
5.7"
Resolution
320 x 240 pixels (QVGA)
Effective display area
W115.2 x H86.4 mm [W4.54 x H3.40 in.]
Display colors
65,536 colors
Backlight
White LED (Not user replaceable. When replacement is required, contact your local distributor.)
Backlight service life
50,000 hrs. or more (each in continuous operation at 25 °C [77 °F] before backlight brightness decreases to 50%)
Brightness control
16 Levels (Adjusted with touch panel or software)
Touch panel type
Resistive Film (analog)
Touch panel lifetime
1,000,000 times or more
Language fonts
Japanese: 6,962 (JIS Standards 1 & 2) (including 607 non-kanji characters), ANK: 158 (Korean, Traditional Chinese, Simplified Chinese, Thai and Cyrillic can be added from the font setting of the screen editor. )
Character sizes
Standard font: 8 x 8, 8 x 16, 16 x 16 and 32 x 32 pixel fonts, Stroke font: 6 to 127 pixel fonts, Image font: 8 to 72 pixel fonts
Font sizes
Standard font: Width can be expanded up to 8 times. Height can be expanded up to 8 times.*1
8 x 8 dots
40 char. x 30 rows
8 x 16 dots
40 char. x 15 rows
16 x 16 dots
20 char. x 15 rows
32 x 32 dots
10 char. x 7 rows

1Other font sizes can be set up with the Editor software.

Electrical specifications
Rated input voltage
24 Vdc
Input voltage limits
20.4 to 28.8 Vdc
Allowable voltage drop
7 ms or less
Power consumption
6.8 W or less
In-rush current
30 A or less
Noise immunity
IEC61000-4-4, 2kV Power port, 1kV Signal ports
Voltage endurance
1,000 Vac, 20 mA for 1 minute (between power terminal and FG terminals)
Insulation resistance
500 Vdc, 10 MΩ or more (between power terminal and FG terminals)
Environmental specifications
International safety standards
PFXGM4301TAD Proface HMI with 5.7 Inch TFT Color LCD Display
Surrounding air temperature
0 to 50 °C [32 to 122 °F]*2
Storage temperature
-20 to +60 °C [-4 to 140 °F]
Ambient humidity
85 % RH (Wet bulb temperature: 39 °C [102.2 °F] max. - no condensation)
Storage humidity
10% to 90% RH (Non condensing, wet bulb temperature 39 °C [102.2 °F] or less)
Dust
0.1 mg/m3 (10-7 oz/ft3) or less (non-conductive levels)
Pollution degree
For use in Pollution Degree 2 environment
Corrosive gases
Free of corrosive gases
Air pressure (altitude range)
800 to 1,114 hPa (2,000 m [6,561 ft.] above sea level or less)
Vibration resistance
IEC/EN 61131-2 compliant, 5 to 9 Hz single amplitude 3.5 mm [0.14 in.]
Electrostatic discharge immunity
IEC61000-4-2, 6 kV direct contact, 8 kV air contact
Drop resistance
IEC/EN 61131-2 compliant, 147 m/s2, x,y,z 3 directions

2When using in an environment where the temperature becomes or exceeds 40 °C for an extended period of time, the screen contrast level may decrease from its original level of brightness.

Memory
Application memory
When using GP-Pro EX:
- Media: FLASH EPROM
- Screen Area: 8MB *Use the screen area when the user font area's capacity is exceeded - for example, when an image font or a picture font is used.
- User Font Area: None
- Logic Program Area: 132KB (Equivalent to 15,000 steps) *Up to 60,000 steps can be converted in software. However, this reduces application memory capacity (for screen data) by 1 MB.
- Free Space: None

Removable System: No*3
Backup memory
When using GP-Pro EX:
- Screen Area: nvSRAM 128KB
- Variable Area: None

Battery: None*4
Clock accuracy
Uses the clock of an external device*5

3Use the screen area when the user font area's capacity is exceeded - for example, when an image font or a picture font is used.
Up to 60,000 steps can be converted in software. However, this reduces application memory capacity (for screen data) by 1 MB.

4Application memory can provide 128KB for Data Backup. For further information, please refer to the GP-Pro EX reference manual.

5Set up the “Clock Updates“ feature with the Editor software. Please refer to the GP-Pro EX reference manual “Common” - “Clock Update Settings” for details.

Interface specifications
Serial (COM1)
Asynchronous Transmission: RS-232C / 422 / 485, Data Length: 7 or 8 bits, Stop Bit: 1 or 2 bits, Parity: None, Even or Odd, Data Transmission Speed: 2,400 to 115,200 bps, 187,500 bps (MPI), Connector: D-Sub 9 pin (plug)
USB (Type A)
Conforms to USB 2.0 (Type A) x 1
Power supply voltage: 5 Vdc ±5 %
Communication distance: 3 m [9.84 ft.] or less
USB (mini-B)
Conforms to USB 2.0 (mini-B) x 1, Communication Distance: 5 m [16.4 ft] or less
Ethernet
IEEE802.3i / IEEE802.3u, 10BASE-T / 100BASE-TX, Connector: Modular jack (RJ-45) x 1
Structural specifications
Grounding
Functional grounding: Grounding resistance of 100 Ω, 2 mm2 (AWG 14) or thicker wire, or your country’s applicable standard (same for FG and SG terminals).
Cooling method
Natural air circulation
Structure
NEMA#250 TYPE 4X (indoor, installed in an enclosure)
Display module: IP65F
Rear module: IP20
Weight
0.62 kg [1.37 lb] or less
Dimensions
External dimensions

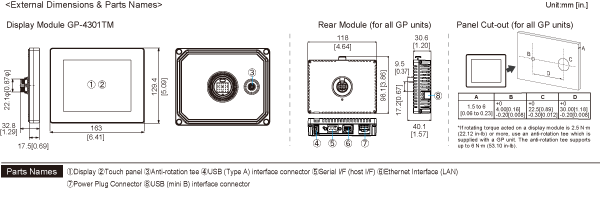

External Dimensions / Interfaces / Panel Cut-out

PFXGM4301TAD Proface HMI with 5.7 Inch TFT Color LCD Display
